org.jcsp.plugNplay
Class Multiplex

java.lang.Object
  org.jcsp.plugNplay.Multiplex

All Implemented Interfaces:

CSProcess

public final class Multiplex
extends Object
implements CSProcess

Fair multiplexes its input Object stream array into one output stream (carrying source channel and data pairs).

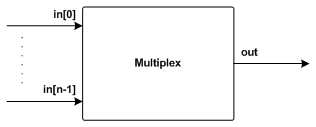

Process Diagram

Description

Multiplex is a process to convert multiple streams of objects to a single stream in such a way that it can be de-multiplexed later. The protocol on the outgoing multiplexed stream consists of an Integer, that represents the channel identity of the multiplexed data, followed by the multiplexed data.

The ordering of the channels in the in array makes no difference to the functionality of this process -- the multiplexing services all channels fairly.

Channel Protocols

Input Channels
in[]	java.lang.Object	The input streams.
Output Channels
out	java.lang.Integer, java.lang.Object	The channel index followed by the multiplexed data.

Example

The following example shows how to use MultiplexInt in a small program.

 import org.jcsp.lang.*;
 import org.jcsp.plugNplay.*;

 public class MultiplexExample {

   public static void main (String[] argv) {

     final One2OneChannel[] a = Channel.one2oneArray (3);
     final One2OneChannel b = Channel.one2one ();

     new Parallel (
       new CSProcess[] {
         new Numbers (a[0].out ()),
         new Fibonacci (a[1].out ()),
         new Squares (a[2].out ()),
         new Multiplex (Channel.getInputArray (a), b.out ()),
         new CSProcess () {
           public void run () {
             String[] key = {"Numbers ",
                             "            Fibonacci ",
                             "                          Squares "};
             while (true) {
               int channel = ((Integer) b.in ().read ()).intValue ();
               System.out.print (key[channel]);     // print channel source
               int n = ((Integer) b.in ().read ()).intValue ();
               System.out.println (n);              // print multiplexed data
             }
           }
         }
       }
     ).run ();

   }

 }


Author:

P.H. Welch and P.D. Austin and P.H. Welch

See Also:

Demultiplex, Paraplex, Deparaplex, Plex

Constructor Summary

Multiplex(AltingChannelInput[] in, ChannelOutput out)
Construct a new Multiplex process with the input Channel in and the output Channels out.

Method Summary

void	run() The main body of this process.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

Multiplex

public Multiplex(AltingChannelInput[] in,
                 ChannelOutput out)

Construct a new Multiplex process with the input Channel in and the output Channels out. The ordering of the Channels in the in array make no difference to the functionality of this process -- the multiplexing services all channels fairly.

Parameters:

in - the input channels

out - the output channel

Method Detail

run

public void run()

The main body of this process.

Specified by:

run in interface CSProcess
