org.jcsp.plugNplay
Class Merge

java.lang.Object
  org.jcsp.plugNplay.Merge

All Implemented Interfaces:

CSProcess

public final class Merge
extends Object
implements CSProcess

Merges an array of strictly increasing Integer input streams into one strictly increasing output stream.

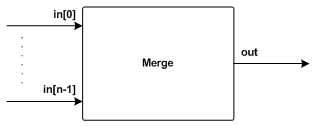

Process Diagram

Description

Merge is a process whose output stream is the ordered merging of the Integers on its input streams. It assumes that each input stream is strictly increasing (i.e. with no repeats) sequence of Integers. It generates a strictly increasing output stream containing all -- and only -- the Integers from its input streams (eliminating any duplicates).

Warning: this process assumes that its input channel array has at least two elements.

Channel Protocols

Input Channels
in[]	java.lang.Number	Assume: in.length >= 2. All channels can accept data from any subclass of Number. It is possible to send Floats down one channel and Integers down the other. However all values will be converted to ints.
Output Channels
out	java.lang.Integer	The output will always be of type Integer.

Example

The following example shows how to use Merge in a small program. The program also uses some of the other plugNplay processes. The program prints, in ascending order (up to Integer.MAX_VALUE), all integers whose prime factors consist only of 2, 3 and 5. Curious readers may like to reason why the infinitely buffered channels are needed.

 import org.jcsp.lang.*;
 import org.jcsp.util.ints.*;

 public final class MergeExample {

   public static void main (String[] argv) {

     final One2OneChannel[] a = Channel.createOne2One (4);
     final One2OneChannel[] b = Channel.createOne2One (3,
                                  new InfiniteBuffer ());
     final One2OneChannel c = Channel.createOne2One ();
     final One2OneChannel d = Channel.createOne2One ();

     new Parallel (
       new CSProcess[] {
         new Mult (2, a[0].in (), b[0].out ()),
         new Mult (3, a[1].in (), b[1].out ()),
         new Mult (5, a[2].in (), b[2].out ()),
         new Merge (Channel.getInputArray (b), c.out ()),
         new Prefix (1, c.in (), d.out ()),
         new Delta (d.in (), Channel.getOutputArray (a)),
         new Printer (a[3].in (), "--> ", "\n")
       }
     ).run ();

   }

 }


Implementation Note

The implementation sets up a balanced binary tree of parallel Merge2 processes to fan-in the merge from its external input channels to its external output. It's a nice example of recursion and parallelism -- here's the run method:

   public void run () {
     final int n = in.length;  // deduce: n >= 2
     switch (n) {
       case 2:
         new Merge2 (in[0], in[1], out).run ();
       break;
       case 3:
         final One2OneChannelImpl c = new One2OneChannelImpl ();
         new Parallel (
           new CSProcess[] {
             new Merge2 (in[0], in[1], c),
             new Merge2 (c, in[2], out)
           }
         ).run ();
       break;
       default:  // deduce: n >= 4
         final int n2 = n/2;
         ChannelInput[] bottom = new ChannelInput[n2];
         ChannelInput[] top = new ChannelInput[n - n2];
         for (int i = 0; i < n2; i++) {
           bottom[i] = in[i];
         }
         for (int i = n2; i < n; i++) {
           top[i - n2] = in[i];
         }
         final One2OneChannelImpl[] d = One2OneChannelImpl.create (2);
         new Parallel (
           new CSProcess[] {
             new Merge (bottom, d[0]),
             new Merge (top, d[1]),
             new Merge2 (d[0], d[1], out)
           }
         ).run ();
       break;
     }
   }


Author:

P.H.Welch

See Also:

Merge2

Constructor Summary

Merge(ChannelInput[] in, ChannelOutput out)
Construct a new Merge2 process with the input channels inand the output channel out.

Method Summary

void	run() The main body of this process.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

Merge

public Merge(ChannelInput[] in,
             ChannelOutput out)

Construct a new Merge2 process with the input channels inand the output channel out. The ordering of the input channels makes no difference to the behaviour of this process.

Parameters:

in - the input channels

out - the output channel

Method Detail

run

public void run()

The main body of this process.

Specified by:

run in interface CSProcess
